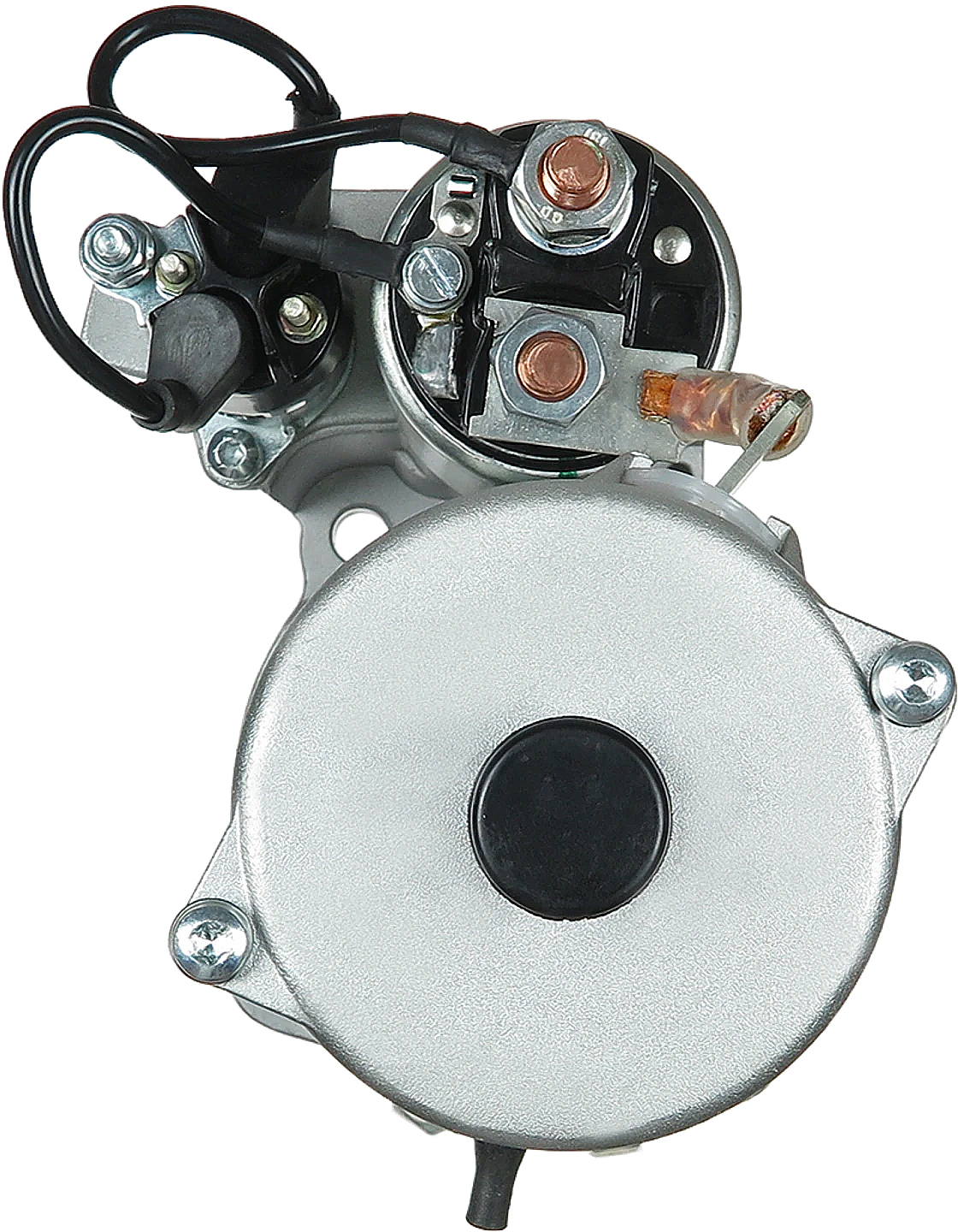

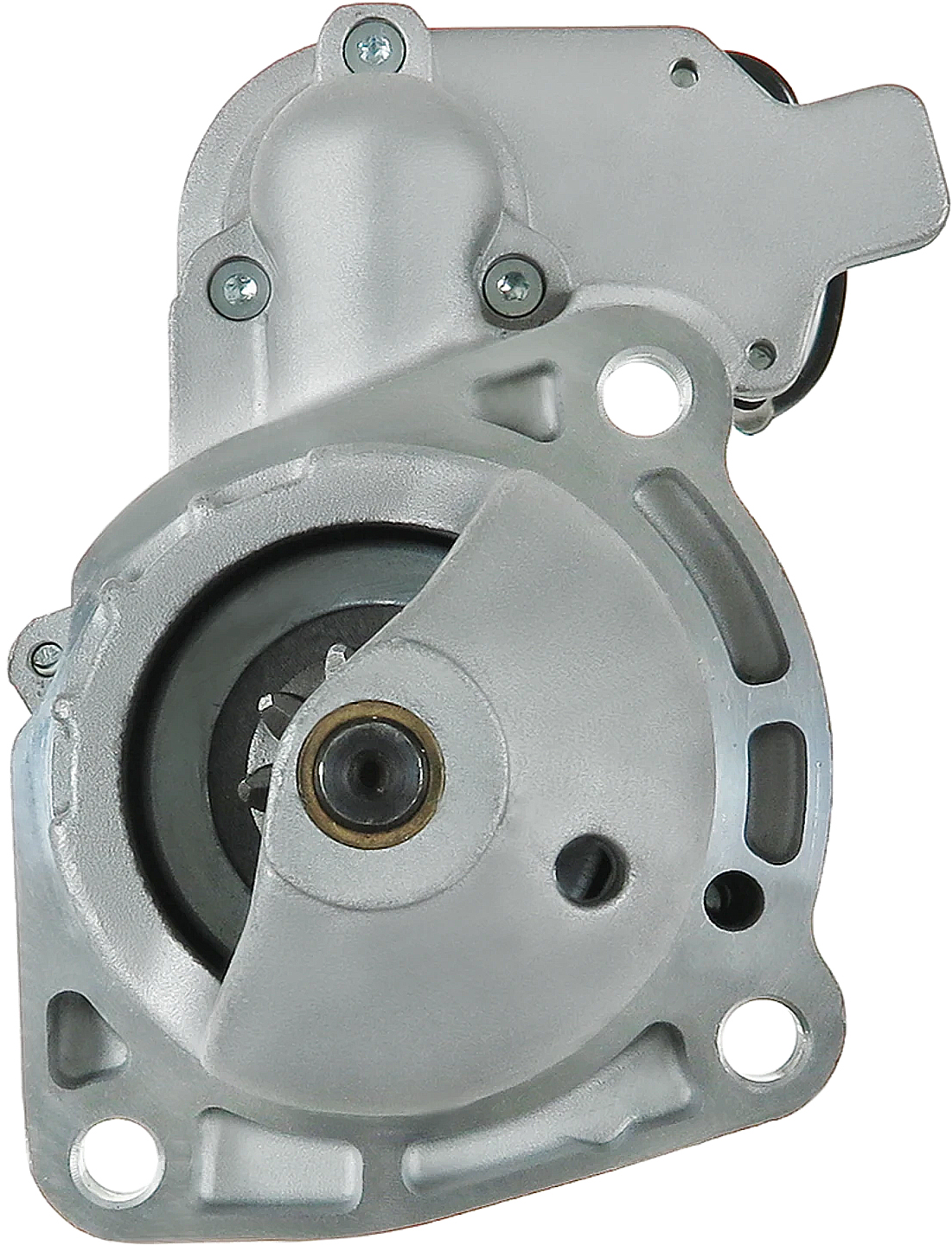

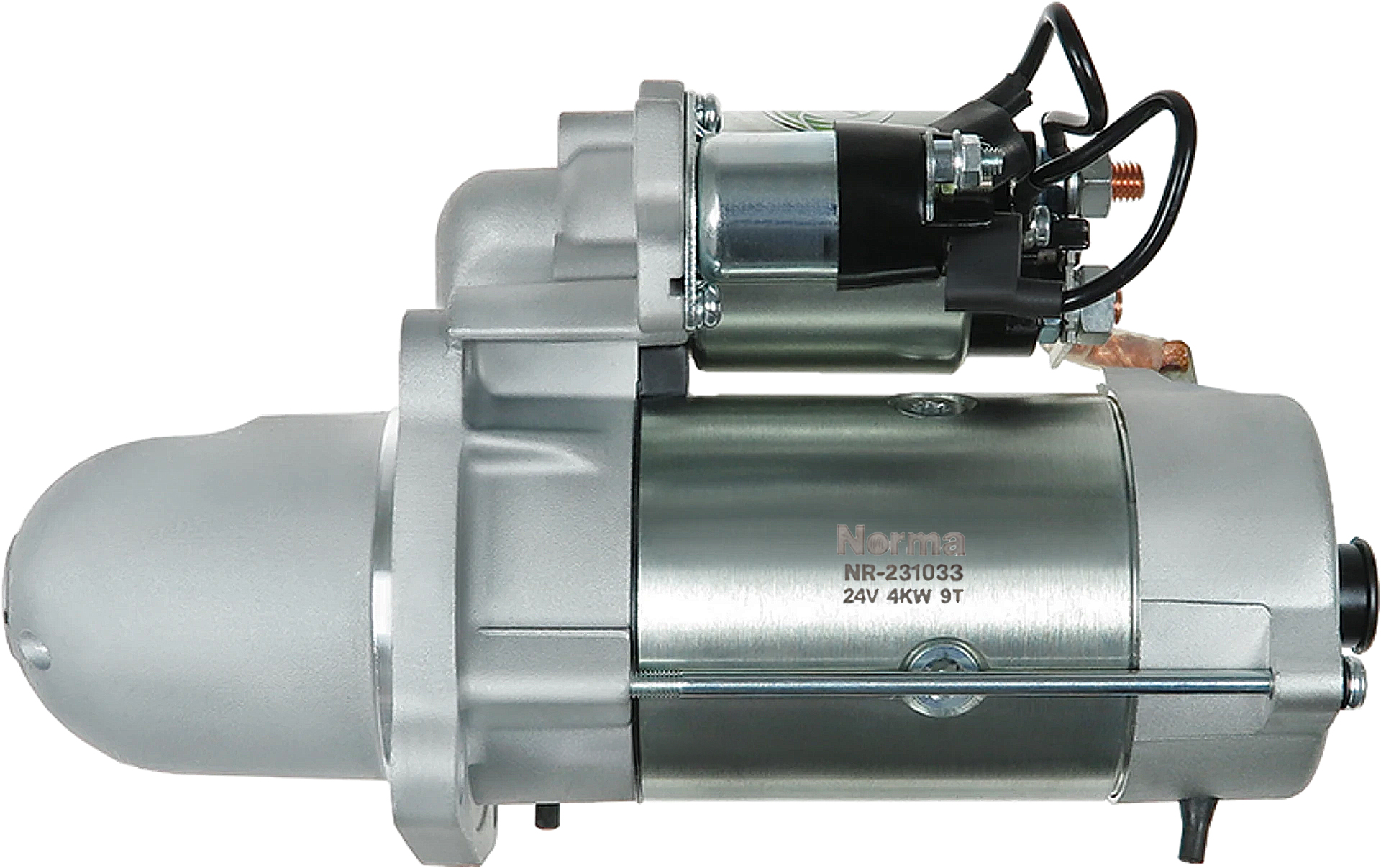

NR-231033 is a 24V, 4.0 kW starter motor designed for heavy-duty truck applications. It is available with 9 or 10 teeth and operates with clockwise rotation (CR). Featuring 89 mm Size A, 48 mm drive distance, and 313 mm total length, it delivers consistent performance under commercial vehicle demands. The starter has 3 mounting holes and no threaded holes, ensuring wide compatibility with multiple European truck models including MAN and Mercedes-Benz.

Technical Specifications
Voltage: 24V
Power: 4.0 kW
Number of Teeth: 9, 10
Rotation: CR (Clockwise)
Size A: 89 mm
Drive Distance: 48 mm
Drive Diameter (Outer): 35 mm
Number of Mounting Holes: 3
Number of Threaded Mounting Holes: 0
Length: 313 mm
Vehicle Type: Truck

Reference Numbers (Crosses)
BL: 011746
Bosch: 0001231002, 0001231032, 0001231033, 0001231133, 0001263015, 0001263016, 0001263049, 0001263050, 0986017240, 0986021083, B001260015
Cargo: 111982, 114523, 115514
CAS: CST10655, CST10655AS, CST10655GS, CST10718GS
DAF: 1516660R
Delco Remy: 101724DR, 10461470, 19084006, 19084014, 917240X, DRS0056, DRS7240N
Ghibaudi: JB243708124
HC-Parts: CS1112
Iskra: 11130728, AZF4507, IS0728
KRAUF: STB1112AB, STB1112BA, STB1112LC, STB1112MH, STB1112SU, STB1112TJ, STB1112UL, STB1112UW, STB1112YN, STB2112BA, STB2112LC, STB2112MH, STB2112UL, STB2112UW, STB2112YN, STB5112MH, STB5112MN, STB6112UL, STD1112NL, STD1112YJ, STI1112SU, STI1112YN, STP1112MH
MAHLE: MS753
MAN: 36262016003
Mercedes-Benz: 0041418101, 0041516201, 004151620180, 0041518401, 004151840180, 0051512001, 005151200180, 0051512201, 005151220180, 0051517601, 0051519701, 0061512201, 006151220180, 0061512203, 006151220380, A0041418101, A004151620180, A0041518401, A004151840180, A0051512001, A005151200180, A005151220180, A0051519701, A0061512201, A006151220180, A0061512203, A006151220380
Motorherz: STB1112RB, STB1112WA, STB2112WA, STB6112WA
PAPA: 510004
Prestolite: 35262930, 860321, M93R3066SE, M93R3066SE-VPP
TEREX: J6141537
Unipoint: STR2311, STR2320
Valeo: 438473, 438478, 458177
WPS: 18364N, 19637N
ZAUFER: 300N10030Z
Remark: STR8340, STR2311, STR8042, STR8024

Application

This starter motor is used in a wide range of Mercedes-Benz Trucks & Buses, specifically compatible with vehicles equipped with OM900, OM902, OM904, OM906, OM924, OM926, M902, M906 engine families. These include medium- and heavy-duty truck models such as:

MERCEDES BENZ TRUCKS & BUSES 1016 / 1017 / 1018 / 1022 / 1023 / 1024
MERCEDES BENZ TRUCKS & BUSES 1117 / 1214 / 1215 / 1216 / 1217 / 1218 / 1222 / 1223 / 1224 / 1225 / 1226 / 1228 / 1229
MERCEDES BENZ TRUCKS & BUSES 1317 / 1318 / 1322 / 1323 / 1324 / 1325 / 1326 / 1328 / 1329
MERCEDES BENZ TRUCKS & BUSES 1517 / 1518 / 1522 / 1523 / 1524 / 1525 / 1526 / 1528 / 1529
MERCEDES BENZ TRUCKS & BUSES 1823 / 1824 / 1826 / 1828 / 1829 / 1833
MERCEDES BENZ TRUCKS & BUSES 1929 L
MERCEDES BENZ TRUCKS & BUSES 2224 L / 2226 L / 2229 L
MERCEDES BENZ TRUCKS & BUSES 2523 / 2528 / 2533
MERCEDES BENZ TRUCKS & BUSES 2628 / 2629 / 2633

All configurations include engine variations such as OM900.912, OM900.913, OM904.911, OM906.910, OM924.920, OM926.913, and others, covering production years between 1996 and 2010, depending on the specific vehicle series.
