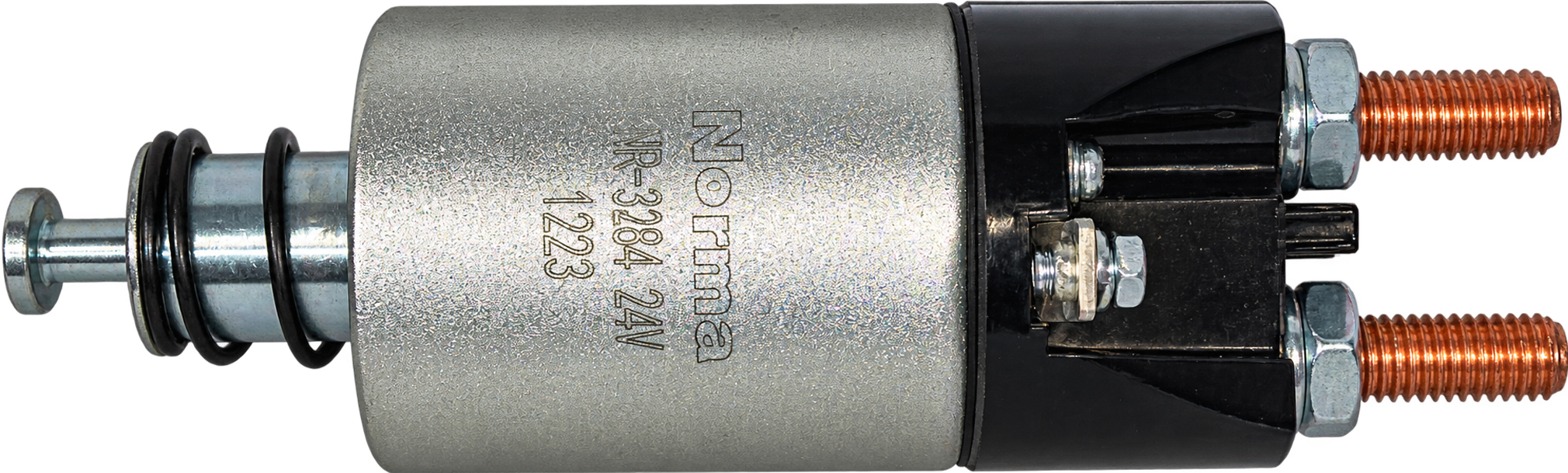

NR-3284 is a 24V Mitsubishi-type starter solenoid featuring a 4-hole mounting configuration and M10 terminals, developed for heavy-duty trucks and commercial vehicle starting systems. It is designed for compatible Mitsubishi-type starter motors used in Iveco Eurocargo, Eurostar, Eurotrakker, and Stralis applications.
The electromagnetic switching mechanism engages the starter drive and enables electrical current to be supplied to the starter motor during engine cranking.
A distinguishing feature of the Norma NR-3284 is its 4-hole mounting design. While standard aftermarket equivalents may feature a 2-hole configuration, the Norma version is manufactured with four mounting holes. The solenoid features M10x1.5 B+ and motor terminals, a 55 mm primary housing diameter, and a 24V operating voltage.
|
Specification |
Value |
|---|---|
|
Product Type |
Starter Solenoid Switch |
|
Voltage |
24V |
|
Type |
Mitsubishi Type |
|
Number of Mounting Holes |
4 |
|
Number of Terminals |
3 |
|
Primary Outer Diameter (O.D.1) |
55.00 mm |
|
Secondary Outer Diameter (O.D.2) |
53.00 mm |
|
L.1 Dimension |
108.40 mm |
|
B+ Terminal |
M10x1.5 |
|
B+ Terminal Length |
29.00 mm |
|
Motor Terminal |
M10x1.5 |
|
Motor Terminal Length |
29.00 mm |
|
Kl. 50 Connection |
M6 / Hole Type |
|
Overall Length (Source Specification) |
180 mm |
|
Additional Pull-In Relay |
No |
CARGO: 330348
CASCO: CSO35609GS
KRAUF: SSM3348, SSM3348LC, SSM3348MH, SSM3348NB, SSM3348WD, SSM3348ZL, SSM9348HE, SSM9348KG
MITSUBISHI: M371XB3271, M371XB5373, ME701823
MOTORHERZ: SSM3348WA
PRESTOLITE: 861189
REAL: 20337906OE
SANDO: SSO35609.1
SIOM: ELE376090
WAI: 054.001.109.130, 054.001.109.370
WOODAUTO: MITM371XB3271
ZAUFER: 311N10183Z
IVECO
Eurocargo 75E16 – 2006 onwards
Eurostar – 1999 onwards
Eurotrakker – 2001 onwards
Stralis – 2002 onwards
Iveco 10 / 13 engines – Compatible 24V 5kW starter motor applications
