PRODUCT DESCRIPTION:

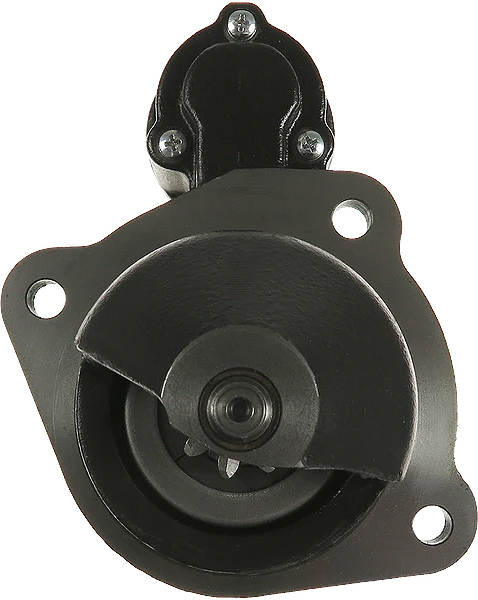

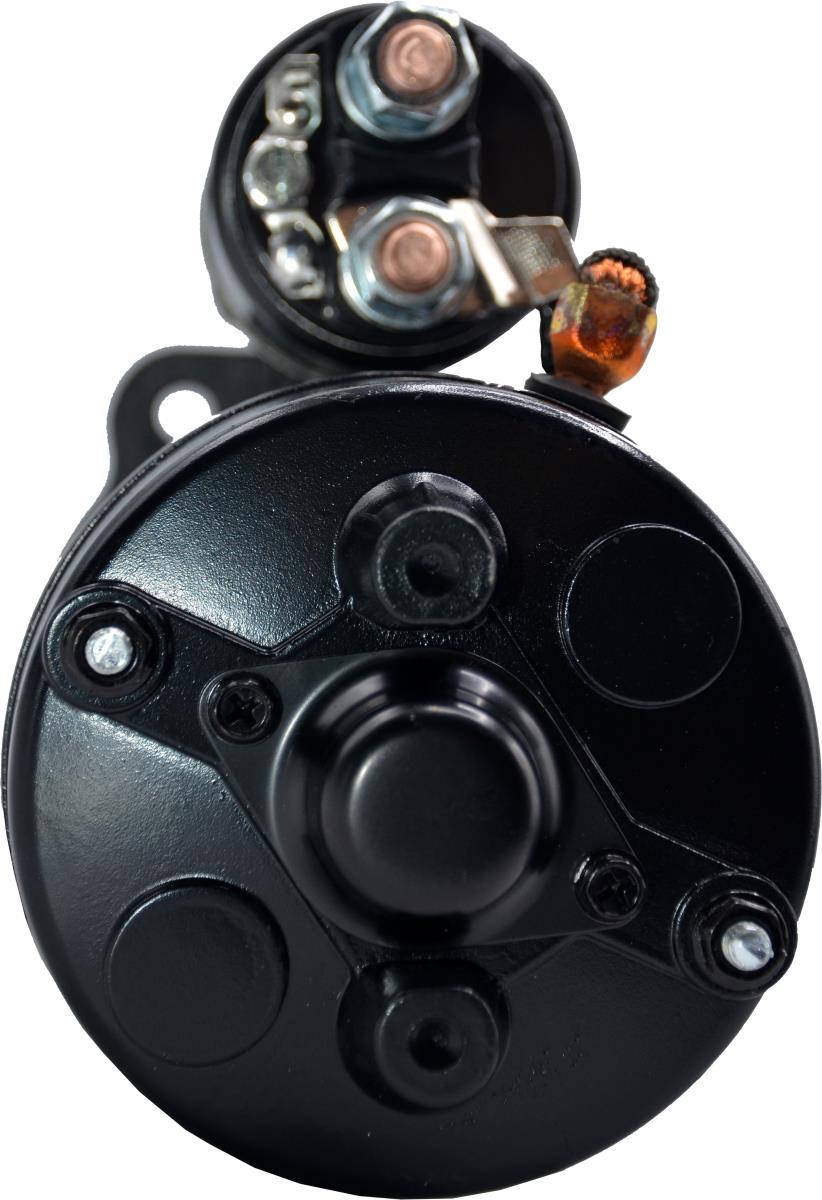

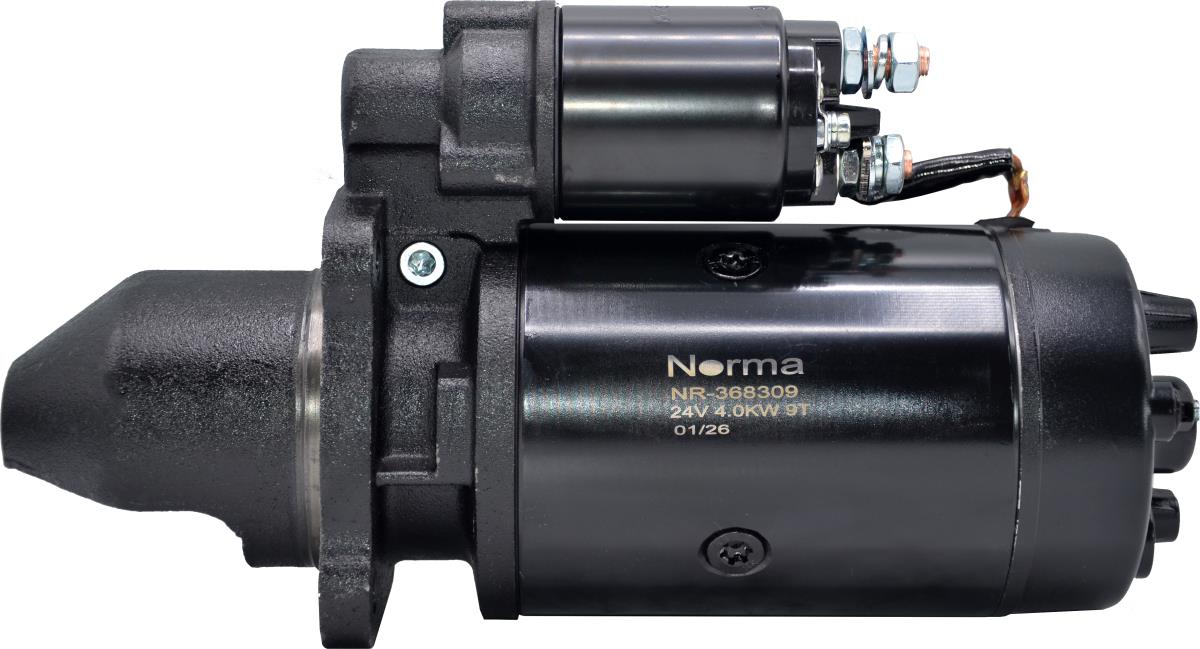

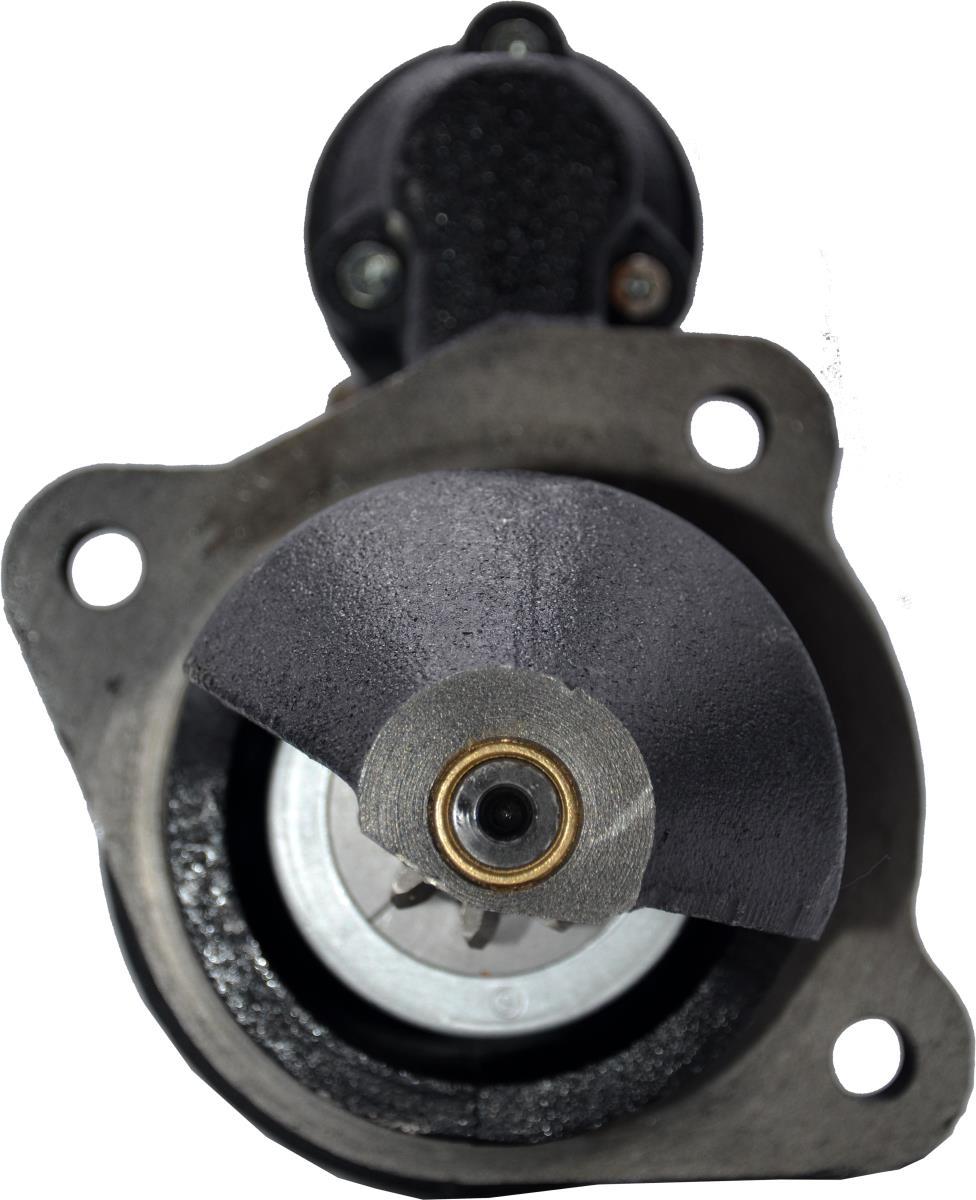

NR-368309 is a 24V, 4 kW starter motor with 9 teeth and clockwise rotation. Designed for use in Mercedes-Benz trucks and buses, as well as ETALON A079 Euro-2 and Euro-3 commercial vehicles.

Technical Specifications

• Voltage: 24V

• Power: 4 kW

• Number of Teeth: 9

• Rotation: Clockwise (CR)

• Size A: 89 mm

• Drive Distance: 48 mm

• Outer Diameter: 33.7 mm

• Number of Mounting Holes: 3

• Number of Threaded Mounting Holes: 0

• Length: 341 mm

Cross Reference Numbers (Crosses)
Bosch: 0001358024, 0001360011, 0001360022, 0001360034, 0001360037, 0001360052, 0001360065, 0001363307, 0001368022, 0001368024, 0001368035, 0001368048, 0001368055, 0001368062, 0001368300, 0001368307, 0001368309, 0001906254, 0986011360, 0986011361, 0986012950, 0986013490, 0986013491, 9000083064, 9000083065, 9000143601, B001809254, B001816326
Cargo: 110524
CAS: CST10612AS, CST10612ES, CST10696AS
CAV: 2998001
DAF: 1516687R
Delco Remy: 10479627, 19024204, 19024225, 19024258, DRS1360, DRS3490
EF: 02201, 10440, 13090
Elmot: 401.000.0
Ghibaudi: JB243708110
HC-PARTS: CS120
HELLA: 8EA725973001
Iskra: 11130010, 11130230, 11130339, 11130407, AZJ0501, AZJ3113, AZJ3549, AZJ3589
JUJ: ST3002
KRAUF: STB0120BW, STB0120MA, STB0120UL, STB0120YN, STB8120UL, STB8120WD, STB9120LC, STB9120TJ, STN0120WD
Liebherr: 5602565
Lucas: 26025200A, LRS818
MAN: 51262017028, 51262017067, 51262019028
Mercedes-Benz: 0011517301, 0011519601, 0021510701, 0031510401, 0031510801, 0031511801, 0031517401, 0031518601, 0031518801, 0041515901, 0041517301, A0011517301, A0011519601, A0021510701, A0031510401, A0031510801, A0031511801, A0031517401, A0031518601, A0031518801, A0041515901, A0041516201, A0041517301
Motorherz: STB0120RB, STB0120WA, STB9120WA, STI0120RB, STP0120RB
PAPA: 510199
Perkins: 2873D301
Prestolite: 35261130, 35261450, 858780GB
Valeo: 436086, 455528, 455529, 455617, 455618
WAI: 2-2297-BO
WPS: 18371N
ZAUFER: 300N10096Z

Application

ETALON
ETALON A079 Euro-2 01.2006-
ETALON A079 Euro-3 01.2009-

MERCEDES-BENZ TRUCKS & BUSES
1017 5.7 (NG) [OM353.950] [OM353.952] [OM353.953] [OM353.975] 11.1975-02.1991
1114 6.0 (LK/LN2) [OM356.903] [OM356.904] 02.1992-12.1999
1114 6.0 (LK/LN2) [OM356.930] [OM366.907] 03.1984-02.1993
1114 6.0 (LK/LN2) [OM356.930] [OM366.907] [OM366.914] 02.1992-12.1999
1114 6.0 (LK/LN2) [OM366.918] 02.1987-02.1993
1114 6.0 (LK/LN2) [OM366.931] [OM366.935] [OM366.933] 12.1985-02.1993
1117 4.2 (LK/LN2) [OM356.947] 02.1992-12.1999
1117 4.2 (LK/LN2) [OM357.906] 03.1994-12.1999
1117 4.2 (LK/LN2) [OM366.975] [OM366.976] 09.1988-02.1993
1117 6.0 (LK/LN2) [OM356.949] [OM357.919] [OM366.971] 03.1993-12.1999
1117 6.0 (LK/LN2) [OM357.901] [OM357.918] 01.1984-12.1999
1117 6.0 (LK/LN2) [OM357.901] [OM357.918] 07.1986-02.1993
1117 6.0 (LK/LN2) [OM366.941] 02.1992-12.1999
1117 6.0 (LK/LN2) [OM366.953] [OM366.962] 03.1984-12.1992
1117 6.0 (LK/LN2) [OM366.970] 07.1986-02.1993
1120 6.0 (LK/LN2) [OM356.986] 02.1992-12.1998
1120 6.0 (LK/LN2) [OM356.994] [OM356.995] [OM356.996] 10.1992-12.1999
1120 6.0 (LK/LN2) [OM357.920] [OM357.927] [OM357.932] 06.1994-12.1999
1120 6.0 (LK/LN2) [OM366.988] 06.1984-02.1993
1120 6.0 (LK/LN2) [OM366.992] 08.1984-02.1993
1124 6.0 (LK/LN2) [OM356.979] [OM356.983] [OM356.989] [OM356.991] 03.1992-12.1999
1124 6.0 (LK/LN2) [OM357.933] [OM357.943] [OM357.944] 06.1994-12.1999
1124 6.0 (LK/LN2) [OM357.942] 06.1994-12.1999
1214 6.0 (LK/LN2) [OM366.913] 01.1984-12.1998
1217 5.7 (NG) [OM353.950] [OM353.951] [OM353.952] [OM353.953] 08.1979-09.1985
1217 6.0 (LK/LN2) [OM357.901] [OM357.918] 03.1994-12.1999
1217 6.0 (NG) [OM366.960] 05.1982-10.1990
1222 6.0 (MK) [OM356.999] [OM357.946] [OM366.999] 02.1993-02.2001
1224 6.0 (MK) [OM356.999] 07.1989-08.1994
