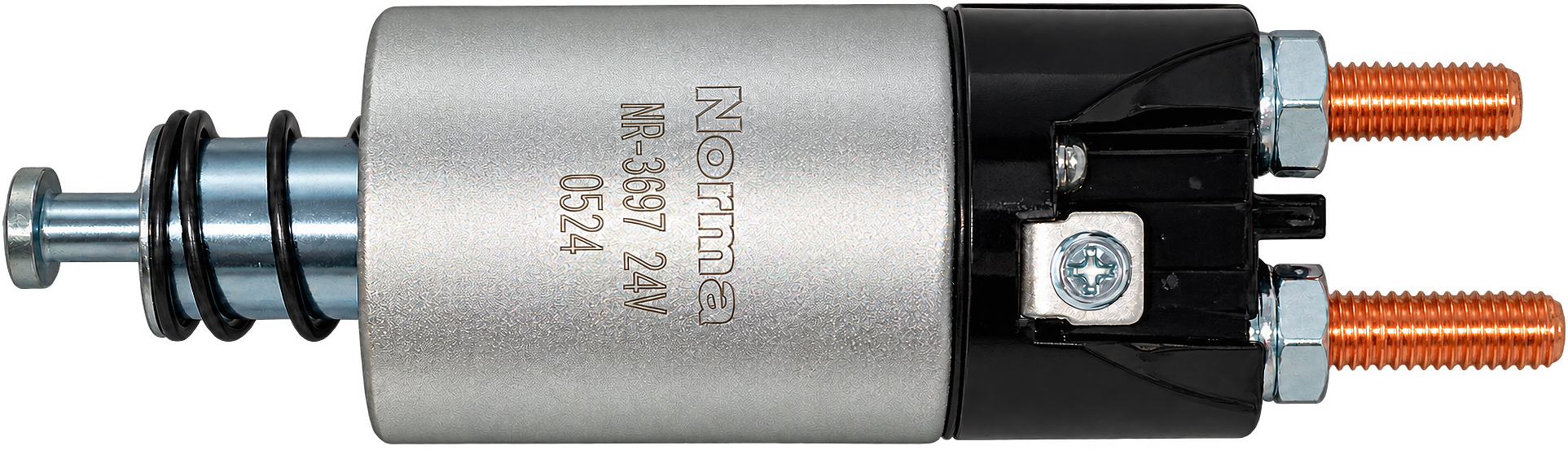

NR-3697 is a 24V Mitsubishi-type starter solenoid featuring a 4-hole mounting configuration and M10 terminals, designed for heavy-duty trucks, commercial vehicles, and industrial engine applications.
As an electromagnetic switching component within the starting system, it engages the starter drive mechanism and enables electrical current to be supplied to the starter motor during engine cranking.

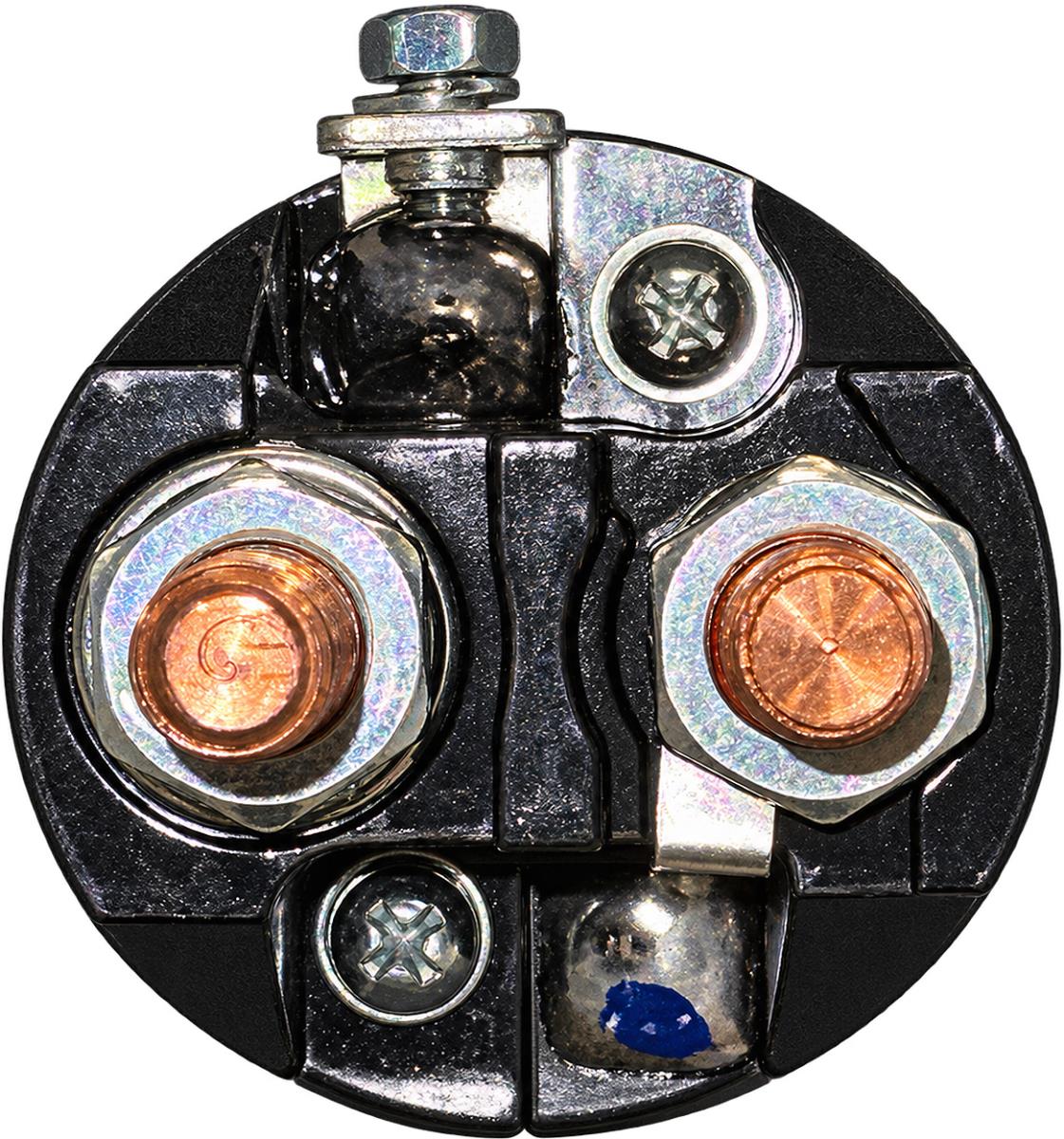

Featuring a 55 mm primary housing diameter and M10x1.5 B+ and motor terminals, the product provides a replacement solution for compatible Mitsubishi-type starter motors.

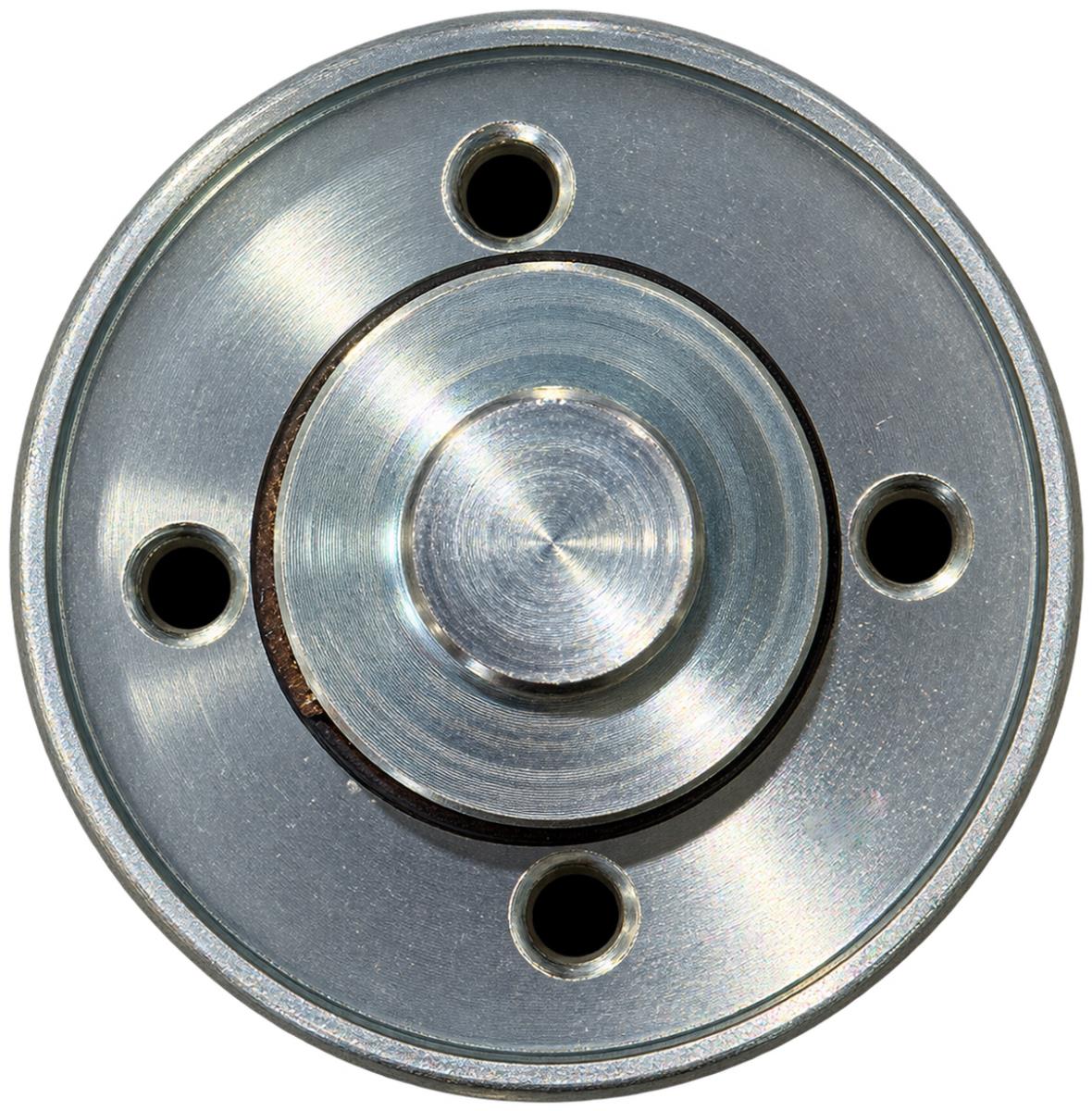

It is intended for compatible starter systems used in Renault Trucks Midlum II and Premium vehicles, Volvo Penta TAD-series engines, and other heavy-duty and industrial applications. The Norma NR-3697 is manufactured with a 4-hole mounting configuration.
|

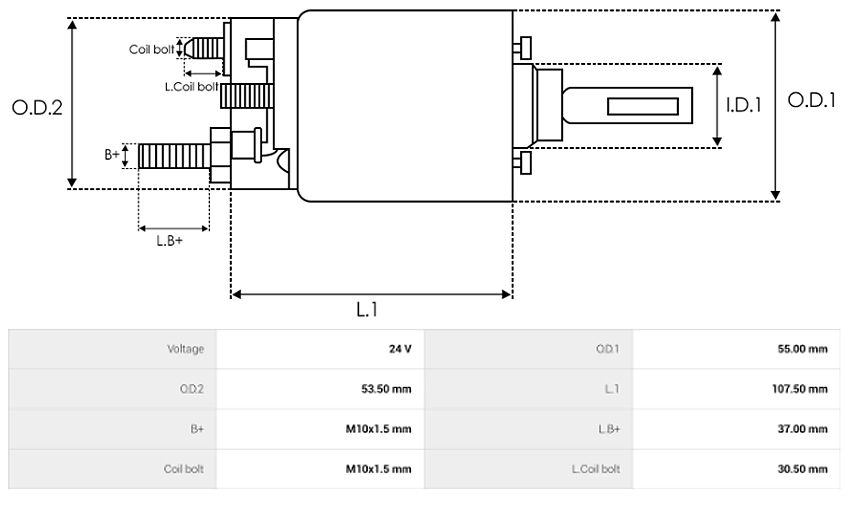

Specification |
Value |
|---|---|
|
Product Type |
Starter Solenoid Switch |
|
Voltage |
24V |
|
Type |
Mitsubishi Type |
|
Number of Mounting Holes |
4 |
|
Primary Outer Diameter (O.D.1) |
55.00 mm |
|
Secondary Outer Diameter (O.D.2) |
53.50 mm |
|
L.1 Length |
107.50 mm |
|
B+ Terminal |
M10x1.5 |
|
B+ Terminal Length |
37.00 mm |
|
Motor Terminal (Coil Bolt) |
M10x1.5 |
|
Motor Terminal Length |
30.50 mm |
|
Application Type |
Heavy-Duty Trucks / Commercial Vehicles / Industrial Engines |
BOSCH: 0399D75534, 1987BE2023, F042010558
CARGO: 237102, F032237102
CASCO: CSO35602AS, CSO35602GS
CQ: CQ2031395
ELECTROLOG: SOL5114
ERA: 227276
GHIBAUDI: E9009, E9045
IKA: 4.6253.9, 4.6259.9, 462539, 462599
KRAUF: SSM7102, SSM7102BA, SSM7102FS, SSM7102FX, SSM7102HE, SSM7102KG, SSM7102LC, SSM7102MH, SSM7102NB, SSM7102UL, SSM7102UW, SSM7102ZL, SSM9102, SSM9102FX, SSM9102NB, SSM9102ZL
MAN: 51262120017, 51262120027
MITSUBISHI: 7125B4175, B4171, B4175, B5871, M371CB5871, M371XB4171, M371XB4172, M371XB4178, M371XB4179, M371XB4180, M371XB4971, M371XB6571, M373XB6571
MOTORHERZ: SSM7102WA, SSM9102WA
POWERMAX: 81012448
REAL: 20337206BN, 20337206OE
RENAULT: 5001866922, 7423480638
SANDO: SSO35602.0, SSO35602.1
UNIPOINT: SNLS7531
VOLVO: 20486515, 20491054
WAI: 054.000.163, 054.000.163.136, 054.000.163.370, 054.000.163.590, 054.001.200.136, 054.001.200.280, 054.001.200.590, 66-0307W, 66-83121-1
WILMINK GROUP: WG2017733
WOODAUTO: MITM371XB4171, SND1500
WPS: 66831211
ZAUFER: 311N10011Z
ZEN: 72897, ZN72897
ZM: 2897, 3897, 4897, ZM2897, ZM3897
|
Brand |
Model |
Type / Engine |
Year |
|---|---|---|---|
|
RENAULT TRUCKS |
Midlum II 160 |
DXi 5 – 4,762 cc |
2006– |
|
RENAULT TRUCKS |
Midlum II 190 |
DXi 5 – 4,762 cc |
2006– |
|
RENAULT TRUCKS |
Midlum II 220 |
DXi 5 – 4,762 cc |
2006– |
|
RENAULT TRUCKS |
Midlum II 240 |
DXi 7 – 7,142 cc |
2006– |
|
RENAULT TRUCKS |
Midlum II 280 |
DXi 7 – 7,142 cc |
2006– |
|
RENAULT TRUCKS |
Premium HD300 |
MIDR 06.20.45 D/41 – 9,839 cc |
1996–2001 |
|
VOLVO PENTA |
TAD560VE |
4 Cylinders – 4,762 cc |
2010– |
|
VOLVO PENTA |
TAD561VE |
4 Cylinders – 4,762 cc |
2010– |
|
VOLVO PENTA |
TAD761VE |
6 Cylinders – 7,142 cc |
2010– |
|
VOLVO PENTA |
TAD762VE |
6 Cylinders – 7,142 cc |
2010– |
|
VOLVO PENTA |
TAD763VE |
6 Cylinders – 7,142 cc |
2010– |
|
VOLVO PENTA |
TAD764VE |
6 Cylinders – 7,142 cc |
2010– |
|
VOLVO PENTA |
TAD765VE |
6 Cylinders – 7,142 cc |
2010– |
|
HONDA |
Pilot 3.5 |
J35A6 |
01.2005– |
|
MITSUBISHI |
Various Models |
6D22 |
01.1987– |
