PRODUCT DESCRIPTION

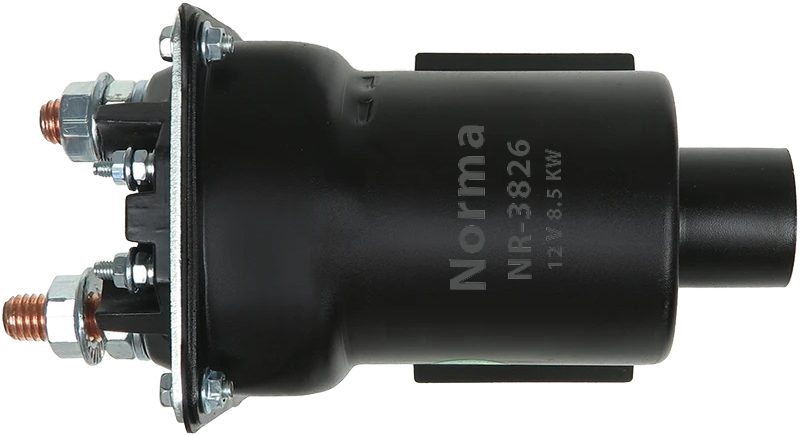

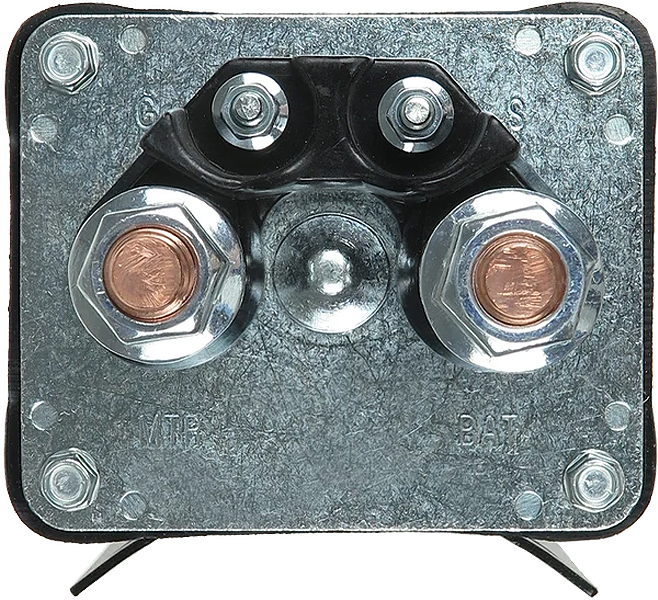

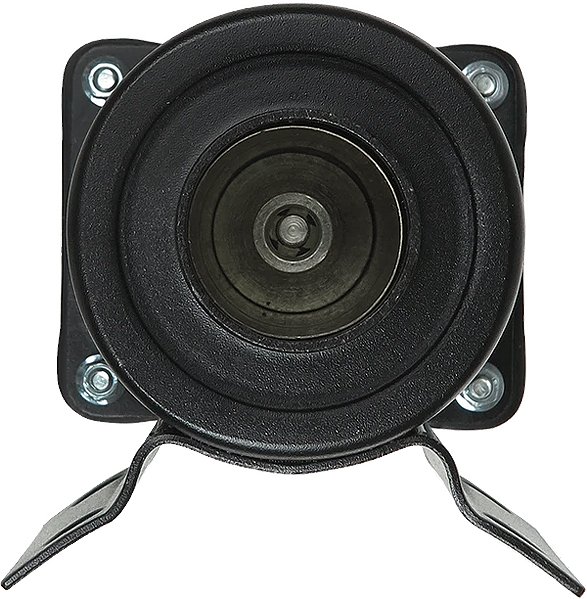

NR-3826 is a 12V, 8.5 kW, Delco Remy 50MT type starter solenoid with a square cover, specially designed for Caterpillar construction machinery and other heavy-duty applications. Ensures robust reliability and powerful performance.

Technical Specifications

• Voltage: 12 V

• Diameter: 75 mm

• Number of Terminals: 4 pcs

• Number of Mounting Holes: 4 pcs

• Type (Kl. 50/mm): Bolt

• Kl. 50/mm: 10-32 UNF

• Kl. 30h/mm: 12.7 mm

• Type (Kl. 15a/mm): Bolt

• Kl. 15a/mm: 10-32 UNF

• B+ Diameter: 12.7 mm

• Length: 201 mm

• Additional pull-in relay (small): No

Applications

• Agco Gleaner (1986)

• Allis Chalmers (1979-1986)

• Case (1979-1989)

• Caterpillar (1985-1995)

• Champion (1975-1992)

• Chevrolet (1979-1988)

• Clark (1973-1985)

• Construction Equipment Co. (1969)

• Cummins Engines (1983-1990)

• Cummins Mercruiser (1980-1985)

• Ford (1981-1989)

• Freightliner (1979-1993)

• GMC (1979-1988)

• Grove Mfg. (1983-1987)

• International (1980-1987)

• John Deere (1974-1984)

• Kenworth (1980-1994)

• Mack (1972-1999)

• Massey Ferguson (1978-1986)

• New Holland

Crosses
Cargo: 131363
CASE: 201326T1
CAT: 2N1973, 3T5068, 5L8735, 7L6586
CBC: BSD441 12V
Delco Remy: 1115556, 1119853, 1119862, 1119879, 1119895
Ford: C3TZ11390A, SW1287, SWG1727
Ghibaudi: E5388
JOHN DEERE: AR102755
KRAUF: SSD1363FX, SSD1363HE, SSD1363NB, SSD6363FX, SSD6363HE
MAC: 21321115561, 21321119862
Magneti Marelli: AME0341
MASSEY FERGUSON: 1022622M91, 1040880M91, 1903165M91
RT: 66-106
SUN: SQD106, SQD110
Unipoint: SNLS146, SNLS146C, SNLS146CP
WPS: 66106, 66110
ZAUFER: 311N10710Z
ZM: ZM951

Servicing (if any)
10461045, 10461046, 10461059, 10461060, 1109295, 1109545, 1109554, 1109790, 1113474, 1114052, 1114055, 1114058, 1114059, 1114072, 1114074, 1114076, 1114080, 1114081, 1114086, 1114088, 1114090, 1114097, 1114098, 1114107, 1114109, 1114110, 1114114, 1114115, 1114117, 1114119, 1114125, 1114126, 1114127, 1114128, 1114129, 1114130, 1114133, 1114136, 1114138, 1114139, 1114141, 1114142, 1114143, 1114144, 1114145, 1114146, 1114147, 1114148, 1114149, 1114150, 1114151, 1114153, 1114155, 1114156, 1114157, 1114158, 1114162, 1114164, 1114165, 1114167, 1114169, 1114170, 1114172, 1114174, 1114175, 1114185, 1114187, 1114190, 1114191, 1114193, 1114194, 1114199, 1114700, 1114702, 1114704, 1114705, 1114708, 1114714, 1114716, 1114720, 1114722, 1114723, 1114724, 1114725, 1114734, 1114748, 1114753, 1114754, 1114761, 1114766, 1114787, 1114791, 1114802, 1114808, 1114811, 1114812, 1114813, 1114814, 1114815, 1114819, 1114823, 1114825, 1114827, 1114828, 1114832, 1114834, 1114835, 1114882, 1114883, 1114884, 1114885, 1114886, 1114888, 1114889, 1114890, 1114891, 1114892, 1114893, 1114894, 1114895, 1114896, 1114897, 1114898, 1114899, 1114900, 1114906, 1114911, 1114913, 1114928, 1114930, 1114933, 1114961, 1114967, 1114977, 1114985, 1114986, 1990212, 1990219, 1990221, 1990261, 1990277, 1990325, 1993703, 1993968, STD2089NB, STD2089WA, STD2089YJ, STD2259NB, STD2436CL, STD2436NB, STD3153NB, STD8523NB
