PRODUCT DESCRIPTION:

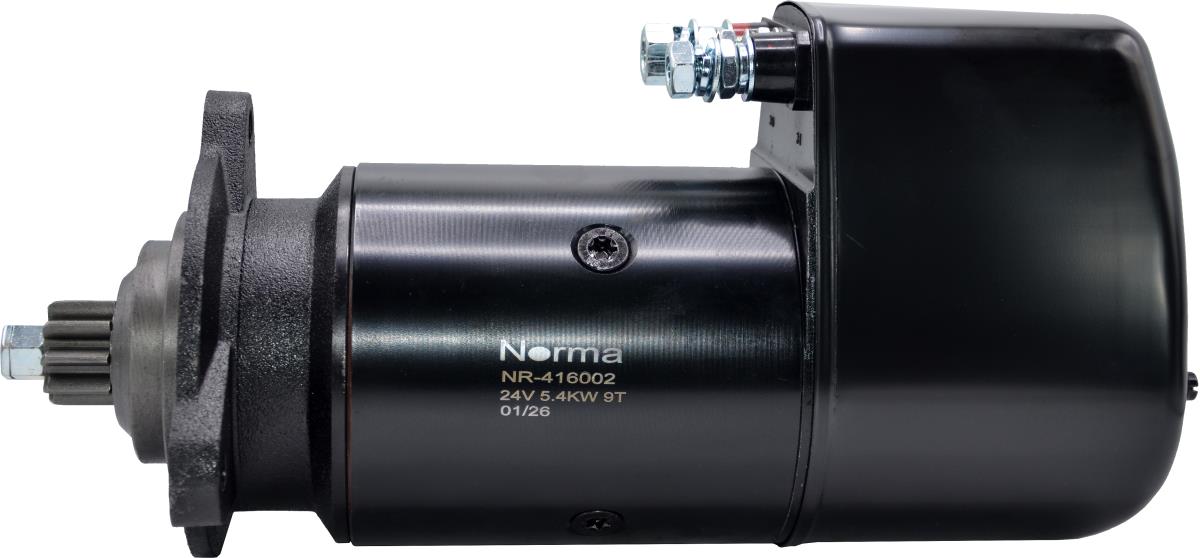

NR-416002 is a 24V, 5.4 kW starter motor with 9 teeth and clockwise (CR) rotation. Designed for use in trucks and agricultural machinery, it offers high durability and compatibility across a wide range of MAN, Mercedes-Benz, CLAAS, and KASSBOHRER vehicles equipped with heavy-duty diesel engines.

Technical Specifications
Voltage (vo): 24V
Power (voltpo): 5.4 kW
Number of Teeth (kwte): 9 pcs
Rotation (ro): CR (Clockwise)
Size A (a): 92 mm
Drive Distance (b): 47 mm
Length (le): 390 mm
Number of Mounting Holes (o1): 3 pcs
Number of Threaded Mounting Holes (o2): 0 pcs
Drive Diameter (od): 34 mm
Vehicle Type (vt): Truck

Applications

CLAAS (Agricultural Machinery)
CLAAS 690 with OM422 engine, 14.6L
Production Years: 10.1974 – 10.1989

KASSBOHRER (Buses & Touring Coaches)
Models: S217HDH, S228DT, S250 Spezial, S309HD, S315GT, S315GT-HD, S315H, S315HD, S315HDH, S316HDS, S317HDH, S319GT-HD, S328DT
Engines: OM422LA, OM442LA, OM441LA, D2866LOH23
Production Years: 1989 – 2001

MAN (Heavy-Duty Trucks & Commercial Vehicles)
Series: M90, TGA, F90, F2000
Engine Types:
– 10.0L (D2865 series)
– 12.0L (D2866 series)
– 12.8L (D2876 series)
– 18.3L (D2840 series)
Notable Models: MAN 18.272, 18.310, 18.360, 19.372, 19.402, 19.480, 24.463, 26.372, 26.403, 28.530, 32.272
Years:
– M90 (1991–1994) – Light-duty segment
– TGA (1999–2006) – Heavy-duty range
– F90 (1988–1996) & F2000 (1994–2001) – Mid to heavy-duty segment

Cross Reference Numbers
Bosch: 0001415001, 0001415027, 0001416002, 0001416010, 0001416023, 0001416073, 0001416078, 0001416079, 0001416202, 0986011570, 0986013730, 0986013731, 0986013733, 0986019000, 0986019003
Cargo: 1986S00059, 1986S10022, 110206
CASCO: 113855, CST10601AS, CST10601ES, CST10638ES, CST10739ES
CASE: 060532943
CAV: 2998011
DAF: 1516707R
Delco Remy: 19024010, 19024017, 19024025, 19024194, 19082026, 911570X, DRS1570, DRS9000
Elmot: 605.000.0, 608.000.0, R2042, R2305, R2308
HC-PARTS: CS191
IKA: 610050, 610070
Iskra: 11130041, 11130178, 11139004, 11139506, AZK5164, AZK5401, AZK5545, AZL3611, IS9035
KRAUF: STB0191LC, STB0191MA, STB0191TJ, STB0191UL, STB9191UL
Lucas: LRS922
Magneton: 9125220
MAHLE: MS698, MS756
MAN: 51252017181, 51252019181, 51262017092, 51262017108, 51262017109, 51262017125, 51262017127, 51262017129, 51262017137, 51262017159, 51262017181, 51262017902, 51262019117, 51262019127, 51262019159, 51262019181
Mercedes Benz: 0021515301, 0031514101, 0031514501, 0041516001, 0041516101, A0021515301, A0031514101, A0031514501, A0031516401, A0041516001, A004151600180, A0041516101, A0041516801, A0051512701, A005151270180, A7431031000
Motorherz: STB0191RB, STB0191WA
New Holland: 1326930
PAPA: 510002
Prestolite: 860508
Renault: 5000241521, 5000822346, 5001000061
Unipoint: STR2380
Valeo: 455531, 455623, 458209
WAI: 50-9117
WPS: 18113N, 30152N
ZAUFER: 300N10029Z
