PRODUCT DESCRIPTION:

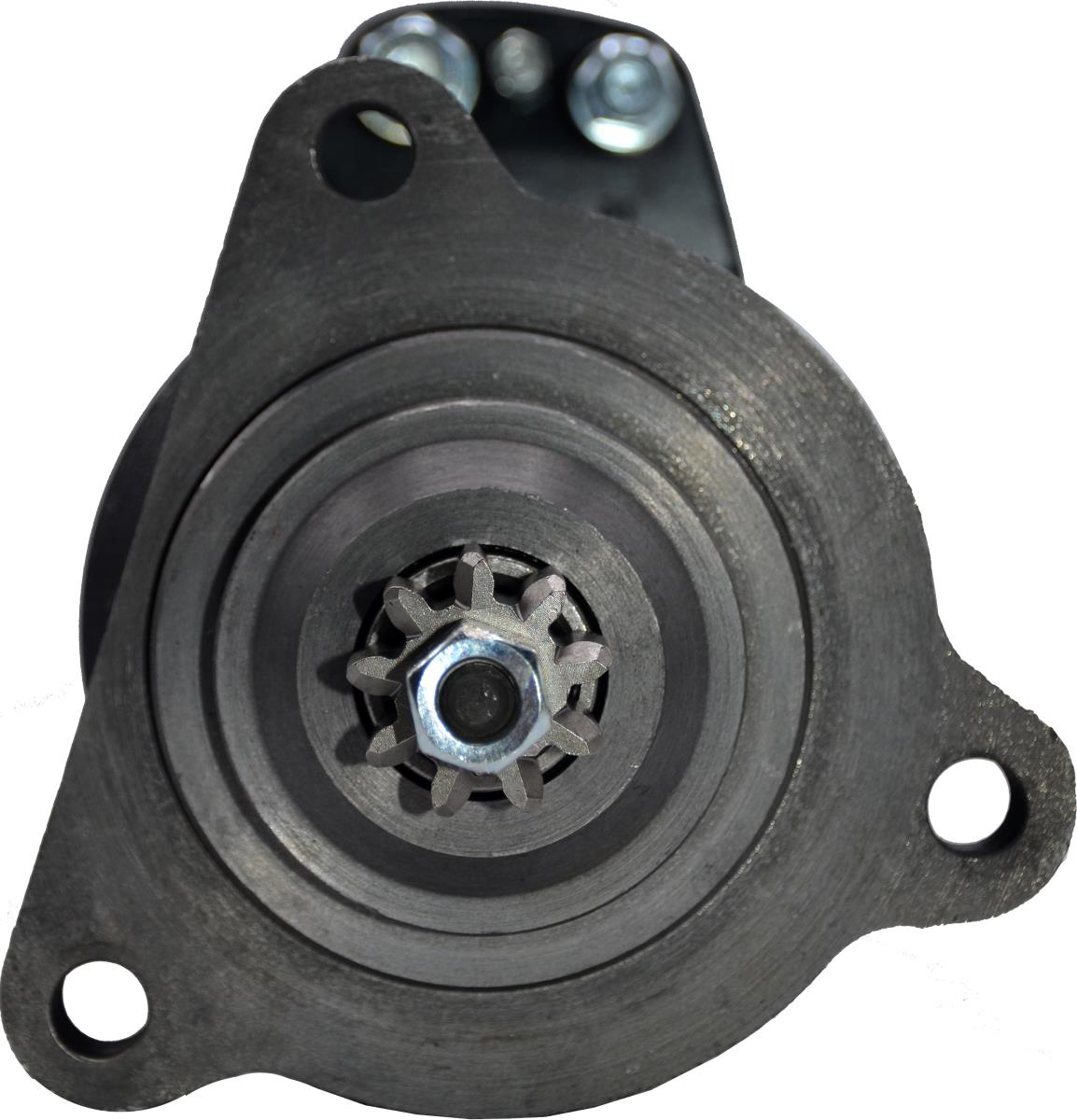

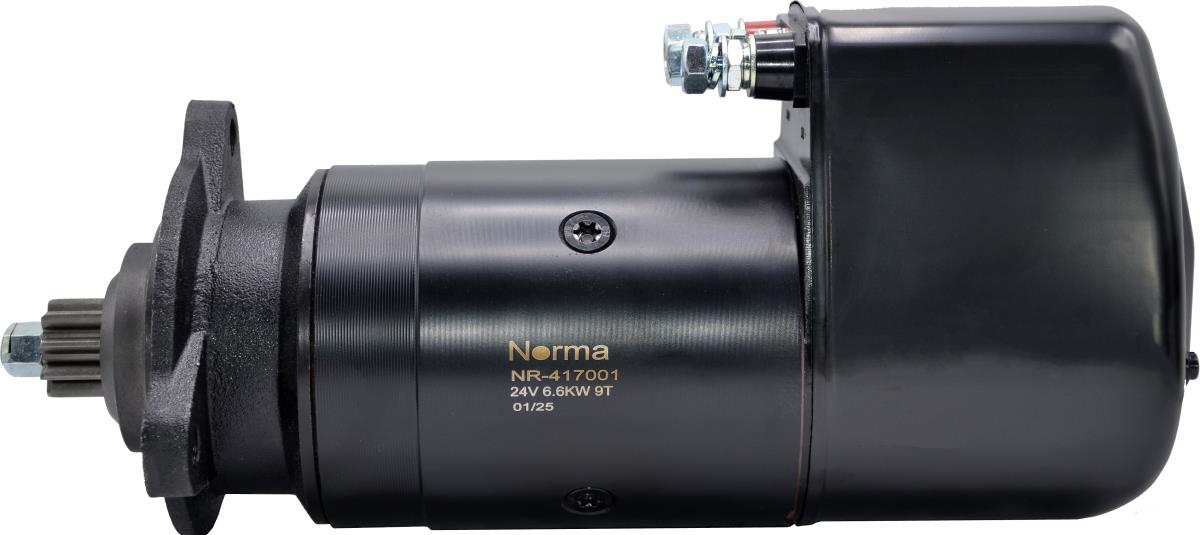

NR-417001 is a 24V, 6.6 kW high-performance starter motor with 9 teeth and clockwise rotation (CR). Designed for heavy-duty commercial vehicles and buses, it ensures reliable starting under harsh operating conditions with wide compatibility across various manufacturers.

Technical Specifications
Voltage (vo): 24V
Power (voltpo): 6.6 kW
Number of Teeth (kwte): 9 pcs
Rotation (ro): CR (Clockwise)
Size A (a): 92 mm
Drive Distance (b): 47 mm
Drive Diameter (od): 34 mm
Number of Mounting Holes (o1): 3 pcs
Number of Threaded Mounting Holes (o2): 0 pcs
Length (le): 407 mm

Cross Reference Numbers
Bosch: 0001330065, 0001410024, 0001410088, 0001411009, 0001411024, 0001416001, 0001416066, 0001417001, 0001417038, 0001417051, 0986011490, 0986011491, 0986011510, 0986011511, 0986011513, 0986016520
Cargo: 110210
CASCO: CST10602AS, CST10602ES, CST10769AS
CAV: 2998010
Daewoo: 65262017058
Delco Remy: 19024009, 19024051, 19024105, 19024151, DRS6520
EF: 10655
Elmot: 005.000.0, R2205
Ghibaudi: JB243708308, JB243708613
GM: 65262017058
HC-PARTS: CS198
HELLA: 8EA012586041, 8EA726025001
IKA: 610060, 610080
Iskra: 11139032, 11139043, 11139152, AZK5403, AZK5498, IS9138
KRAUF: STB0198LC, STB0198LP, STB0198MA, STB0198SK, STB0198TJ, STB0198UL, STB9198MA, STB9198MN, STB9198UL
Lucas: LRS00825, LRS819
MAHLE: 72741784, MS490, MS696
MAN: 51262017057, 51262017061, 51262017087, 51262017110, 51262017123, 51262019057, 51262019061, 5195100500100
Mercedes Benz: 0001512801, 0011519701, 0021510201, 0021517801, 0031514601, 0051512801, A0001512801, A0011519701, A0021510201, A0021517801, A0031514601, A0051512801
MN: 081467001
Motorherz: STB0198RB, STB0198WA
PAPA: 510198
Prestolite: 860506GB, 860661, 860681
Renault: 5000049122, 5000241777, 5000806878, 5000816041
Unipoint: STR2391
Valeo: 438041, 455530
WAI: 18375N, 2-2622-BO
WPS: 18375N
ZAUFER: 300N10212Z

Application
MAN 22.230
MAN R292
MAN SD200
MERCEDES BENZ 1425 LS
MERCEDES BENZ 1427 F
MERCEDES BENZ 1617
MERCEDES BENZ 1625
MERCEDES BENZ 3836
MERCEDES BENZ BUS
RENAULT COUACH RC240DTS
DAEWOO MEGA D2366 (1997–)
DAEWOO SOLAR D2366T (1996–)
