PRODUCT DESCRIPTION:

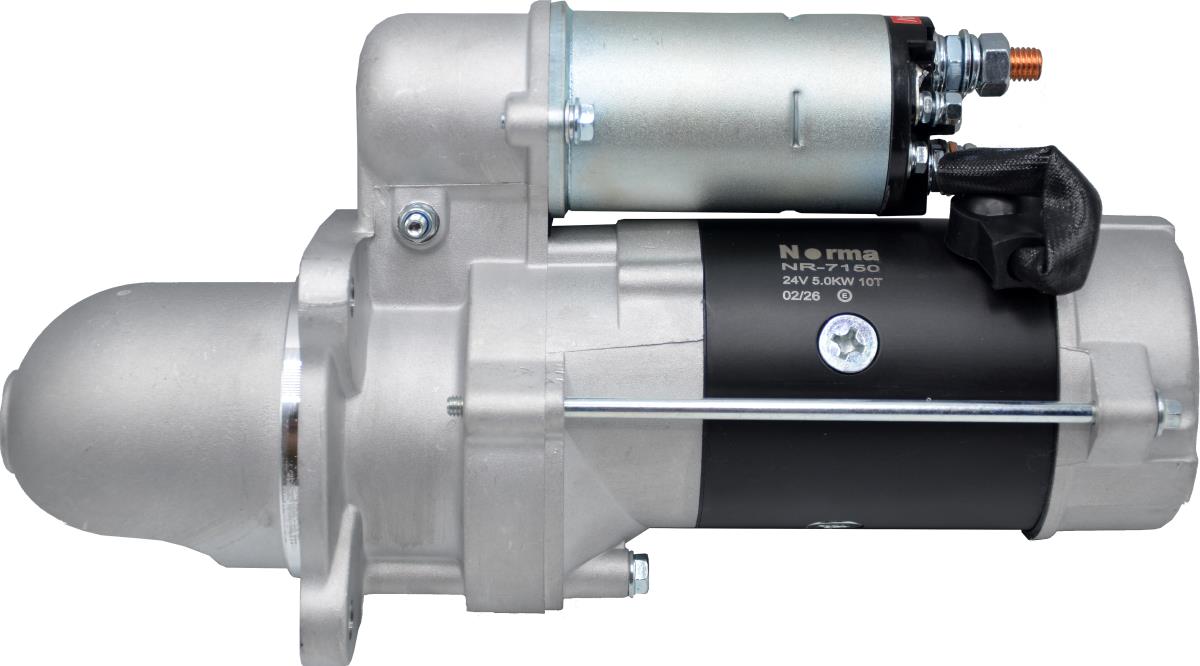

NR-7150 starter motor is a high-performance unit operating at 24V, delivering 4.5 kW of power with 10 teeth and clockwise (CR) rotation in a Delco-type structure. It is designed for use with Cummins B-series engines (4B/6B/6BT) and found in various commercial vehicles and construction equipment including Kamaz 4308, Dresser 510B, Samsung SF130, Timberjack 608, PAZ, Higer, Dongfeng, FAW. Known for its compact structure and durable output in heavy-duty operations.

Technical Specification

• Voltage: 24 V

• Power: 4.5 kW

• Number of Teeth: 10 pcs

• Rotation: Clockwise (CR)

• Size A: 89 mm

• Drive Distance: 47 mm

• Drive Diameter (outer): 32 mm

• Number of Mounting Holes: 3 pcs

• Number of Threaded Mounting Holes: 0 pcs

• Length: 339 mm

Referans Numaraları (Crosses)

BMC: 9P901544
Bosch: 0986023450
Cargo: 111257, 111760
CAS: CST60600, CST60600AS, CST60600ES, CST60600OS, CST60600RS
Cummins: 323911, 3354458, 3604677, 3604677PX, 3604677RX, 3675204, 3675204RX, 367520RX, 3904057, 3909914, 3918377, 3918378, 3926932, 3926932R, 3926932RX, 3926932X, 4935789, 4944701, C3918377, C4935789
DAF: 1516994R
Delco Remy: 10455500, 10455502, 10461283, 10461465, 10461468, 10461469, 10461486, 10465400, 10479616, 10479622, 10479623, 10479655, 10479656, 10496884, 1113277, 1113291, 1113294, 1113594, 1998459, 1998488, 8200064
Dresser: 1268855H91
ELD: ELD-ST-4308
FIAT: 76192011
Ford: 1046640, 95AX19D528AA
HC-Parts: US857
Hella: 8EA732680001
Higer: 10A1215511, 37K0308010
Iskra: 11131359, AZF4594, IS1140
JCB: 71440033
KRAUF: STB0857WD, STD0857BA, STD0857CL, STD0857LC, STD0857NB, STD0857NL, STD0857TJ, STD0857YJ, STD5857BA, STD5857NB, STD5857TJ, STD5857YJ, STD6857NB, STD6857NL, STD9857BA, STD9857NB, STD9857TJ, STI0857LC, STI0857MH, STI0857SU, STP0857MH, STZ0857BW
Messmer: 220601
Motorherz: STD0857RB, STD0857WA, STD5857WA, STD6857WA, STI0857WA
Nikko: 0230002030, 0230002031, 0230002040, 0230002270, 0230002470
Onan: 1911961, 1912103
PAPA: 510128, PA510153
Prestolite: 860318
Unipoint: STR7150, STR7162
Volvo: 707112, 9011707112
WAI: 3708N-010
WPS: 6582N, 6592N, 6839N
Zaufer: 300N10134Z

Application:

• BMC Prof, 28 MT

• PAZ Bus, KAMAZ 4308 (3.9L / 5.9L),

• CASE (Cummins EQD14020),

• YUTONG 6737D 3.9 Diesel,

• Cummins Engines: 4B 3.9L / 5.9L, 6BT 5.9, 6BT C, 6BTA-200C,

• Dresser 510B,

• Samsung SF130 / SE130 Ekskavatör,

• Timberjack 608 Harvester,

• Dong Feng, Higer, FAW
