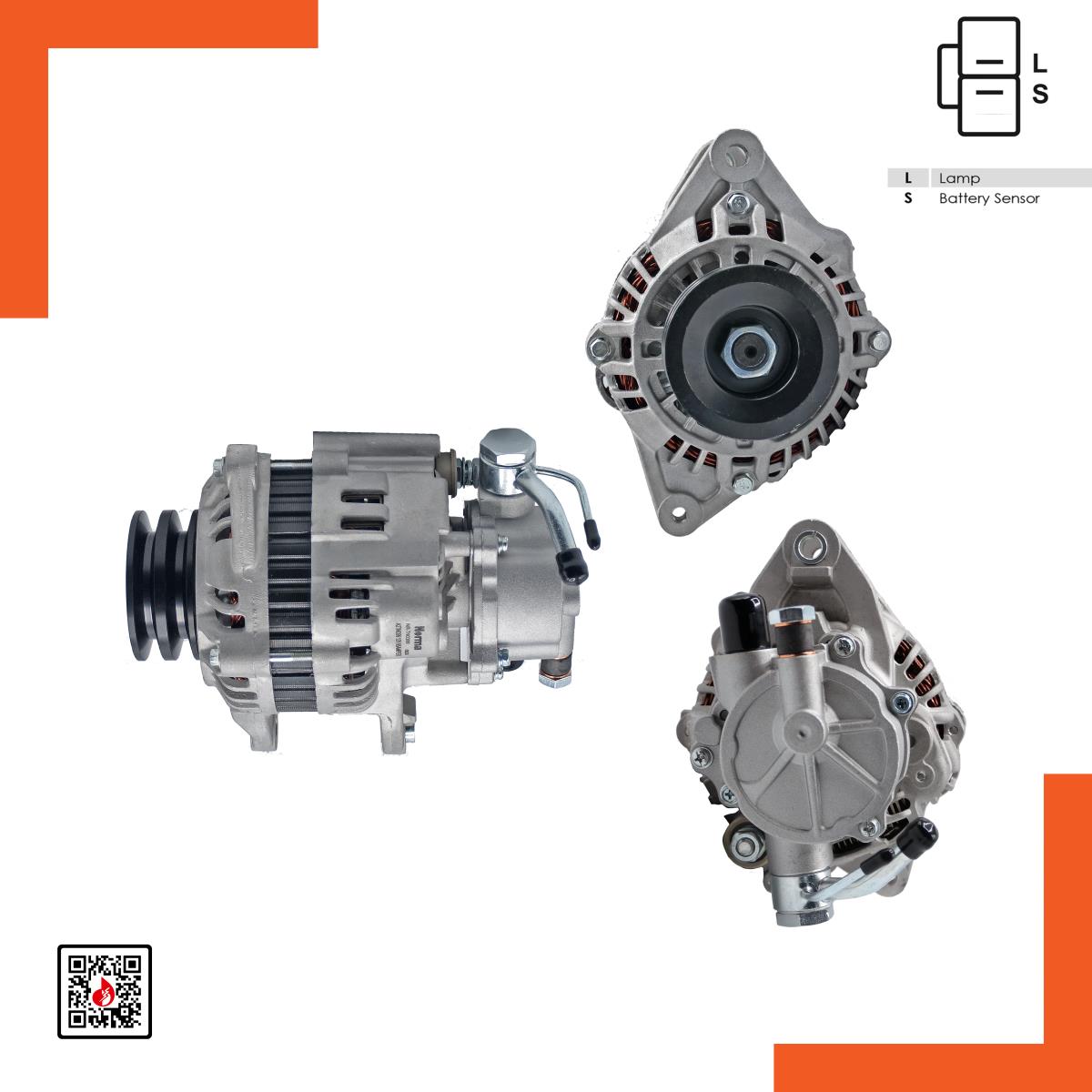

NR-TN0399 is a 12V, 65A alternator designed with a vacuum pump and PL_2004 plug type. With its compact dimensions, dual pulley (AP type), and high durability, it ensures stable performance in Mitsubishi diesel-powered light commercial vehicles. Suitable for applications requiring strong torque and efficient alternator output, especially for 4D56 engine platforms.

Technical Specifications

• Voltage: 12V

• Current: 65A

• Size A: 42.00 mm

• Size B: 13.50 mm

• Size C: 55.00 mm

• G Quantity: 2

• Outer Diameter 1 (O.D.1): 56.00 mm

• Outer Diameter 2 (O.D.2): 77.00 mm

• Width 1 (W.1): 9.00 mm

• Pulley Type: AP

• D.1: M8x1.25

• D.2: 8.50 mm

• D.3: 8.50 mm

• Length (L.1): 229.00 mm

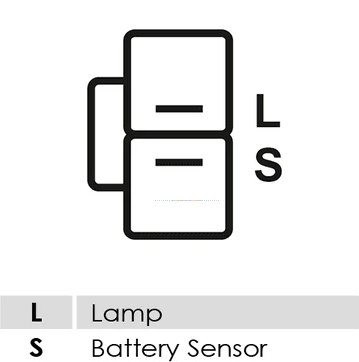

• Plug: PL_2004

• Vacuum Pump: Yes

Application
MITSUBISHI
L300 2.5 Diesel (P05W, P05U, P15V) [4D56] — 06.1994–08.1996
L300 2.5 TD 4WD (P0.. / P1.. / P2..) — 1994–1996 — 2477ccm — Engine Code: 4D56

Reference Numbers(Crosses)
BOSCH: 0986081740
CARGO: 111872, F032111872
HELLA: 8EL737323-001
MITSUBISHI: 1800A243, A002T81499, A002T82899AT, A002TN0399, A002TN0499, A002TN0499AM, A002TN0499AT, A002TN0499BT, A002TN0499ZT, A2T81499, A2T82899AT, A2T82899ZT, A2TN0399, A2TN0499, A2TN0499AM, A2TN0499AT, A2TN0499BT, A2TN0499ZT, MD304129, MD306648, MD313939, MN137867
EFFE: ALTL0793, PRAL0793
ASHIKA: 002-C969, 002-C971, 002-C993
CASCO: CAL35109AS, CAL35109GS
CEVAM: 9129
EAI: 56706
ELSTOCK: 28-2666
ERA: 210622
GHIBAUDI: AG0391
HC PARTS: JA1179IR
JAPANPARTS: ALC969, ALC971, ALC993
JAPKO: 2C969, 2C971, 2C993
KRAUF: ALM1179
KUHNER: 401179RI, 401179RIV
LOGISTIK: 446228
LUCAS: LRA01556, LRA1556
POWERMAX: 89212369
PSH: 155.604.065.130, 155.604.065.136, 155.604.065.138, 155.604.065.360, 155.604.065.375
REAL: 20137901BN, 20137901OE
SANDO: 2035109.0, 2035109.1
STARDAX: STX100173, STX100173R, STX100432
WAI / TRANSPO: 12664N
WOODAUTO: ALT31055, MITA2TN0399, WOOALTV018
